EARTHMOVING EQUIPMENT::

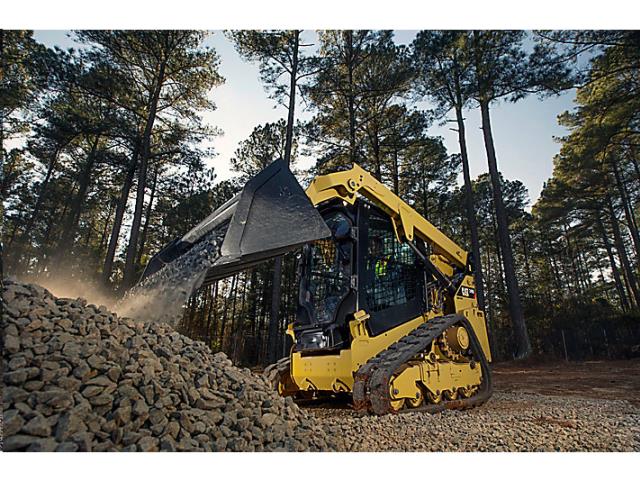

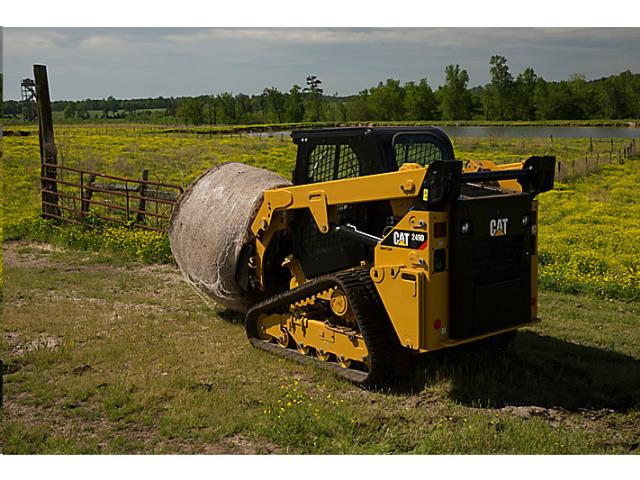

SKID STEER, CAT 249D TRACK (4 Ton)

• The Cat 249D Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
• Operating Weight 7685.0 lb
• Tipping Load 4600.0 lb
• Breakout Force - Tilt Cylinder 3963.0 lb
• Ground Contact Area - With 320 mm/12.6 in Track 1373.0 in
• Ground Pressure - With 320 mm/12.6 in Track 5.6 psi
• Rated Operating Capacities - 50% Tipping Load 2300.0 lb
• Ground Contact Area - With 400 mm/15.7 in Track 1716.0 in
• Ground Pressure - With 400 mm/15.7 in Track 4.6 psi
• Rated Operating Capacities - 35% Tipping Load 1610.0 lb
• Rated Operating Capacity with Optional Counterweight 2500.0 lb
• Length - Track on Ground 54.5 in
• Overall Length - Track 71.2 in
• Height - Top of Cab 80.3 in
• Ground Clearance 7.6 in
• Departure Angle 34.5
• Maximum Dump Angle 48
• Bucket Pin Height - Carry Position 8.6 in
• Bucket Pin Height - Maximum Lift 118.2 in
• Clearance at Maximum Lift and Dump 88.7 in
• Length - With Bucket on Ground 127.3 in
• Length - Without Bucket 99.3 in
• Maximum Overall Height 150.8 in
• Maximum Reach - With Arms Parallel to Ground 51.8 in
• Rack Back Angle - Maximum Height 87.5
• Reach - Maximum Lift/Dump 28.6 in
• Turning Radius from Center - Bucket 81.1 in
• Turning Radius from Center - Coupler 45.7 in
• Turning Radius from Center - Machine Rear 57.4 in
• Vehicle Width (320 mm/12.6 in tracks) 66.0 in
• Vehicle Width (400 mm/15.7 in tracks) 69.1 in
• Bucket Pin Reach - Maximum Lift 12.2 in
• Travel Speed - Forward or Reverse 7.0 mile/h
• Air conditioning
